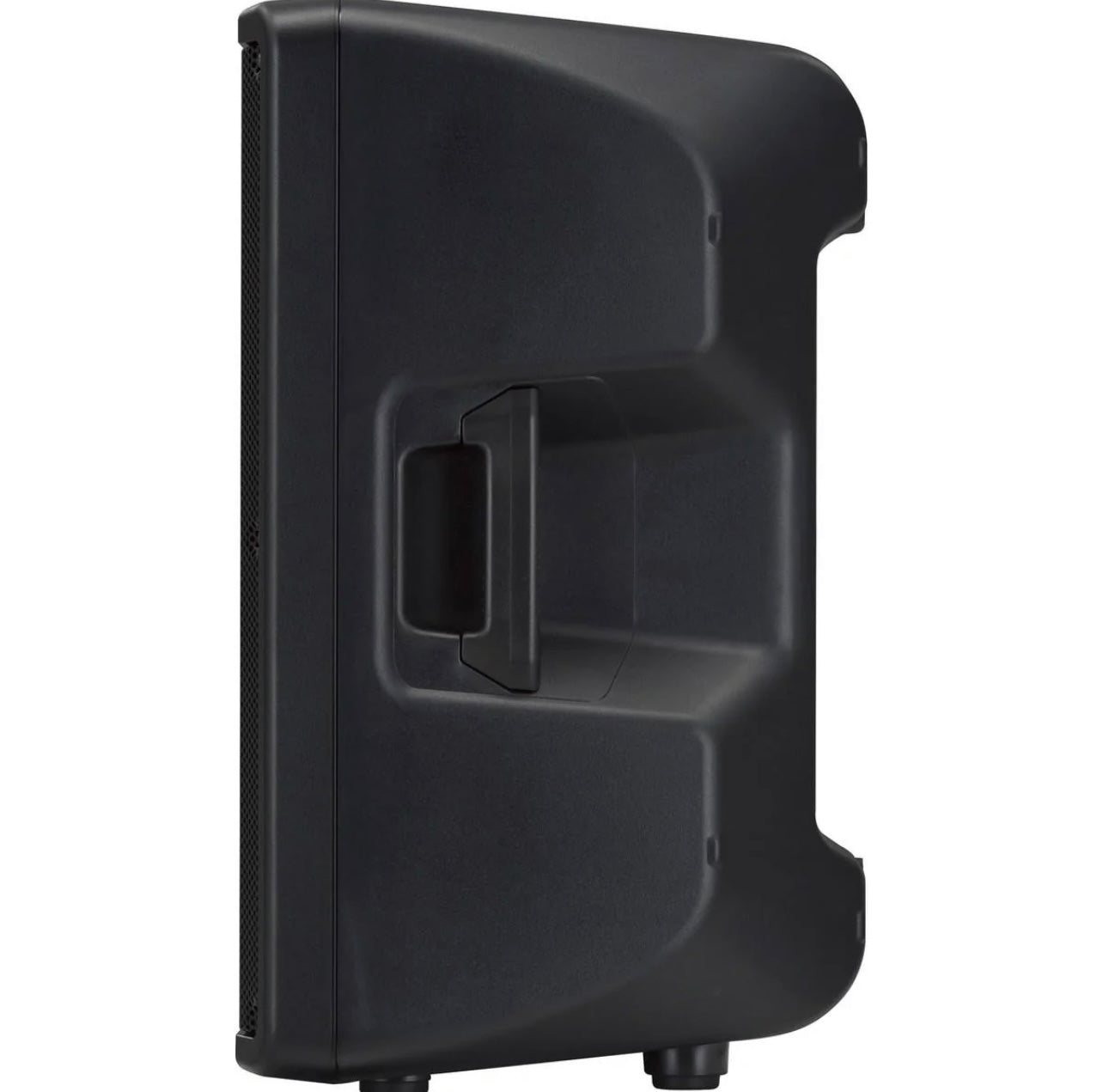

Yamaha CBR12 Passive 12" Speaker

*Free Delivery In 1 Working Day!

Built to perform. The Yamaha CBR12 12'' Passive PA Speaker delivers true high-definition sound with exceptional clarity. Custom-designed transducers are capable of handling 700W of peak power, and are able to produce an impressive maximum SPL of up to 125dB. All with minimal distortion, even at high output levels. Combined with a wide-dispersion constant directivity horn, the CBR12 can deliver a phenomenal show that your audience will never forget.

The high-performance components are well-protected inside the CBR12's rugged plastic cabinet. A robust metal grille keeps your transducers safe from knocks and impact damage, whilst intelligent HF protection circuitry and a responsive LF driver make sure that the speakers won't blow from over-cranked output levels.

Plus, with a lightweight and ergonomic design, you can transport and position your CBR speakers with ease.

Custom-designed transducers

Crafted from years of experience and knowledge. The Yamaha CBR12 is equipped with a 12'' custom designed LF driver and a 1.4'' compression driver capable of handling up to 700W of peak power. The cabinet may be compact in size, but its capabilities definitely aren't. Thanks to Yamaha's technical genius, this 12'' powerhouse is capable of delivering an impressive maximum SPL of up to 125dB. All without compromise when it comes to audio quality, performance, and reliability. The CBR12 also features Yamaha's extremely accurate wide dispersion constant-directivity horn. With a coverage angle of 90° x 60°, the CBR12 evenly projects clear a mid-range and accurate high frequencies. Sound remains balanced and defined all the way to the outer-most edges of its wide coverage area.

HF protection and responsive LF driver

The CBR12 utilizes a clever and unique circuitry system. It acts as a protective step to automatically limit the level of output from the high frequency driver. This in turn helps to reduce the chance of blowing a speaker due to over-powering. Combined with an extremely responsive low frequency driver, the CBR12 sounds crisp, clear, and full at any output level.

Rugged, portable, and easy to install

Portability and versatility factored heavily into the CBR12's design. With a rugged, compact, and light-weight plastic enclosure, you can rest assured knowing your speaker is capable of withstanding the rigours of the road. And with a sleek steel grille, the custom-designed drivers will remain safe from knocks and bangs both on the road and on the stage.

The CBR12's ergonomic carry handles allow for fast, safe, and easy transportation. Plus, with an optimised 50° symmetrical wedge angle, this versatile loudspeaker can become a high-performance stage monitor in seconds. The CBR12 also features M8 rigging points, allowing you to quickly and easily install your loudspeaker for more permanent applications (eyebolts not included).

Features

• 12'' 2-way passive loudspeaker
• High-power, high-definition sound with outstanding versatility
• Perfect for FOH, monitoring, or rigged applications
• Custom-designed transducer and top-quality components
• Built to deliver unparalleled performance
• Extremely accurate 90° x 60° constant directivity horn
• Highly effective HF Protection circuitry and response LF unit
• Powerful and reliable performance at any output level
• SpeakON and 1/4'' jack input connectors for simple connectivity
• Perfect for installations with M8 rigging points
• Durable and compact plastic enclosures
• 50° symmetrical floor monitor angle

Specifications

• System Type: 2-way passive speaker, bass-reflex type
• LF Driver: 12'' cone, 2'' voice coil, Ferrite magnet
• HF Driver: 1.4'' compression driver, 1'' throat, Ferrite magnet
• Frequency Range: 50Hz - 20kHz (-10dB)
• Crossover Frequency: 2.1kHz
• Coverage Angle:: 90° x 60° (H x V) constant directivity horn
• Nominal Impedance: 8 Ohms
• Power Rating:
• Noise: 175W
• PGM: 350W
• Max.: 700W
• Sensitivity: 96dB SPL (1W, 1m)
• Maximum SPL: 125dB SPL (calculated, 1m)
• Floor Monitor Angle: 50° symmetrical
• Connectors: 1/4'' jack x 1
• SpeakON NL4MP x 1
• Pole Socket: 35mm (bottom x 1)
• Rigging Points: Bottom x 2, Rear x 1 (fit for M8 x 15mm eyebolts)
• Handle: Side x 2
• Material: Plastic
• Colour: Black
• Dimensions: 376mm x 601mm x 348mm / 14.8''' x 23.7'' x 13.7'' (with rubber feet) (W x H x D)
• Weight: 13.9kg / 30.6lbs
